The Leica F50 M525 surgical microscope is a multi-purpose surgical microscope combining cost-efficiency and convenience. Features, such as the fluorescence module Leica FL800, BrightCare, HD documentation, and others, make it the ideal microscope for procedures in Neurosurgery, Spine, Otolaryngology, and Plastic Reconstructive. Outstanding contrast, resolution, color fidelity and depth of focus providing brilliant, illuminated field of view. This compact optics carrier improves upon the design of the M520 optics carrier providing extended working distance, increased depth, greater light intensity, sharper images and Auto Iris illumination.

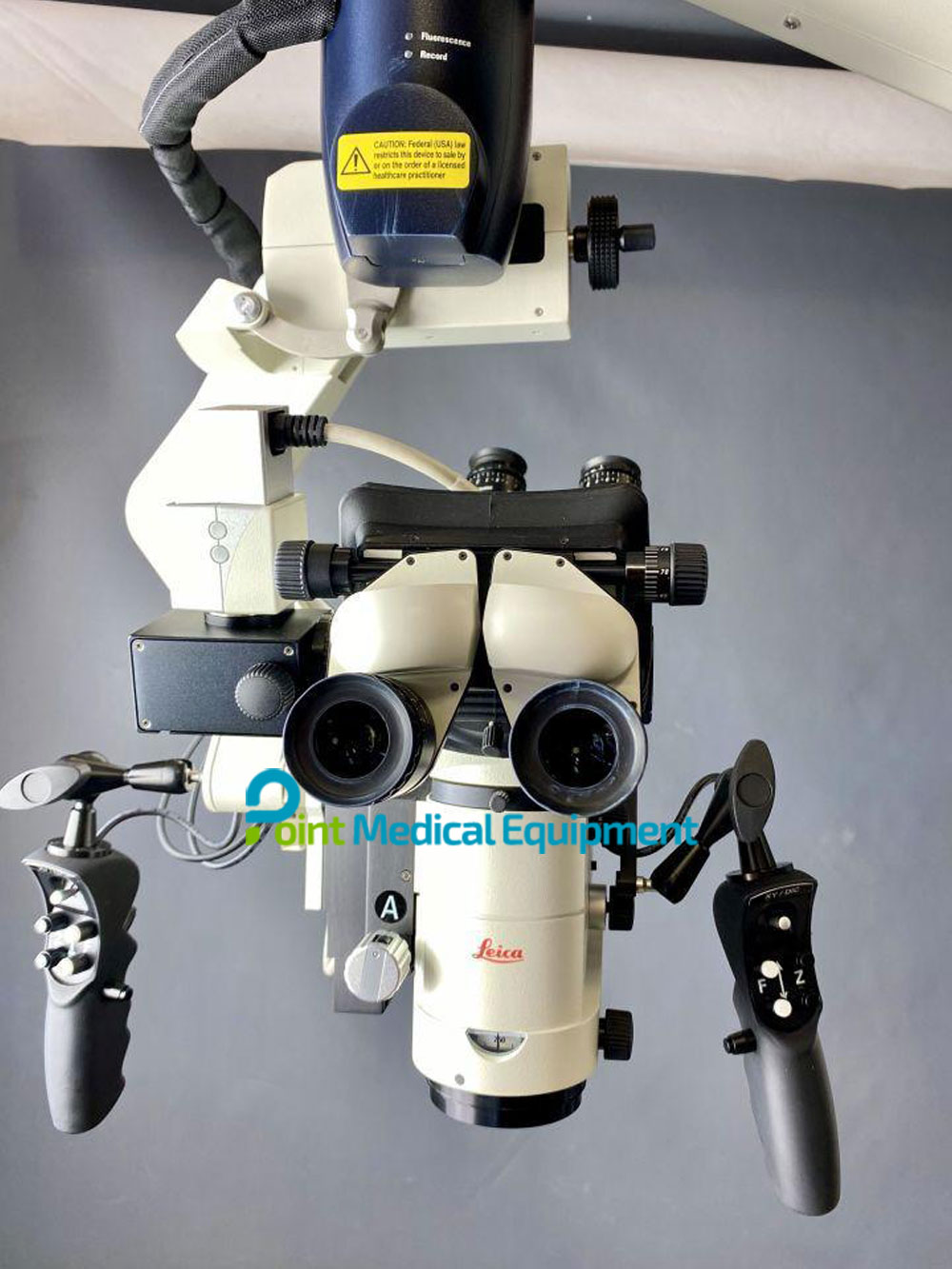

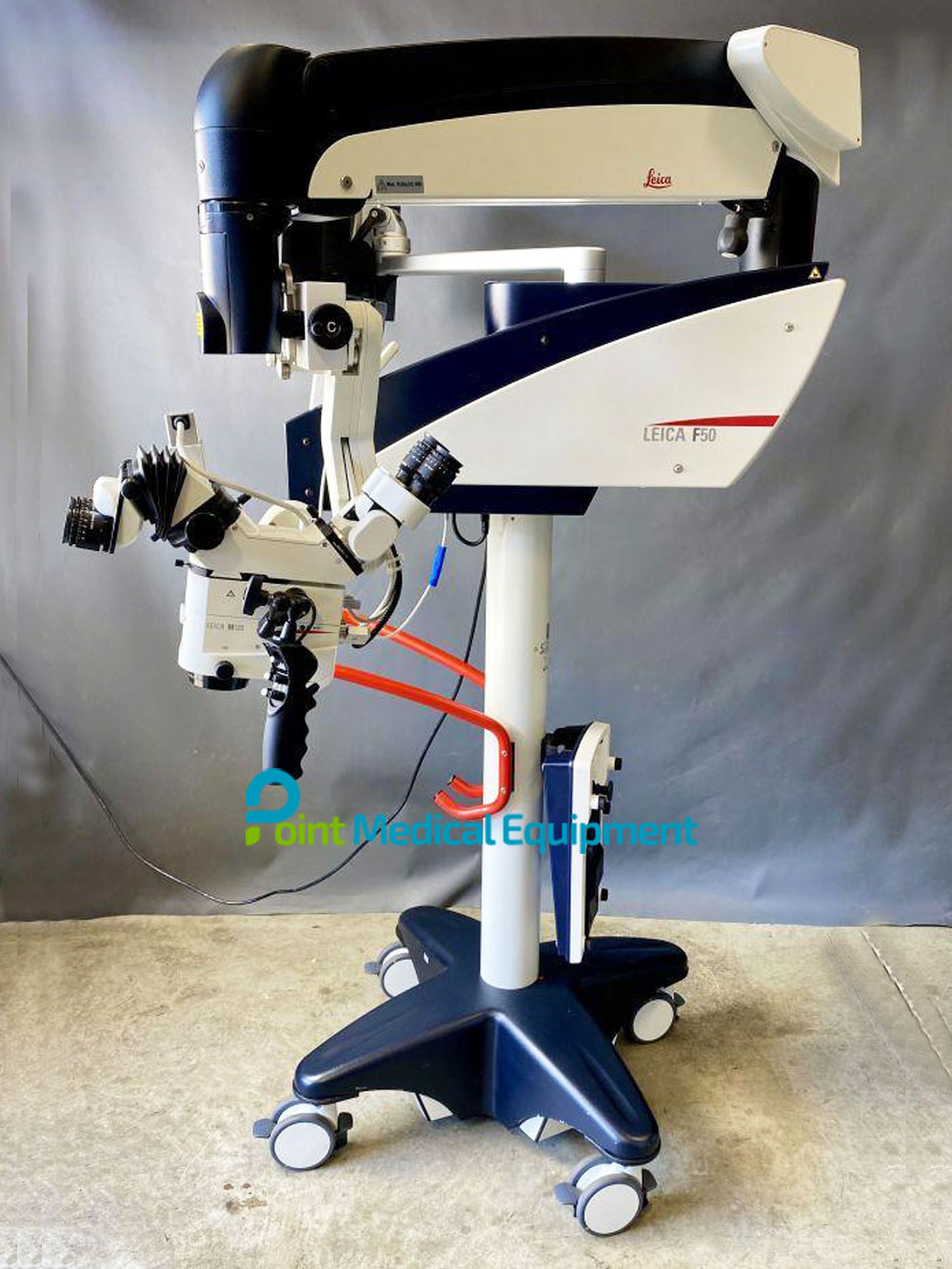

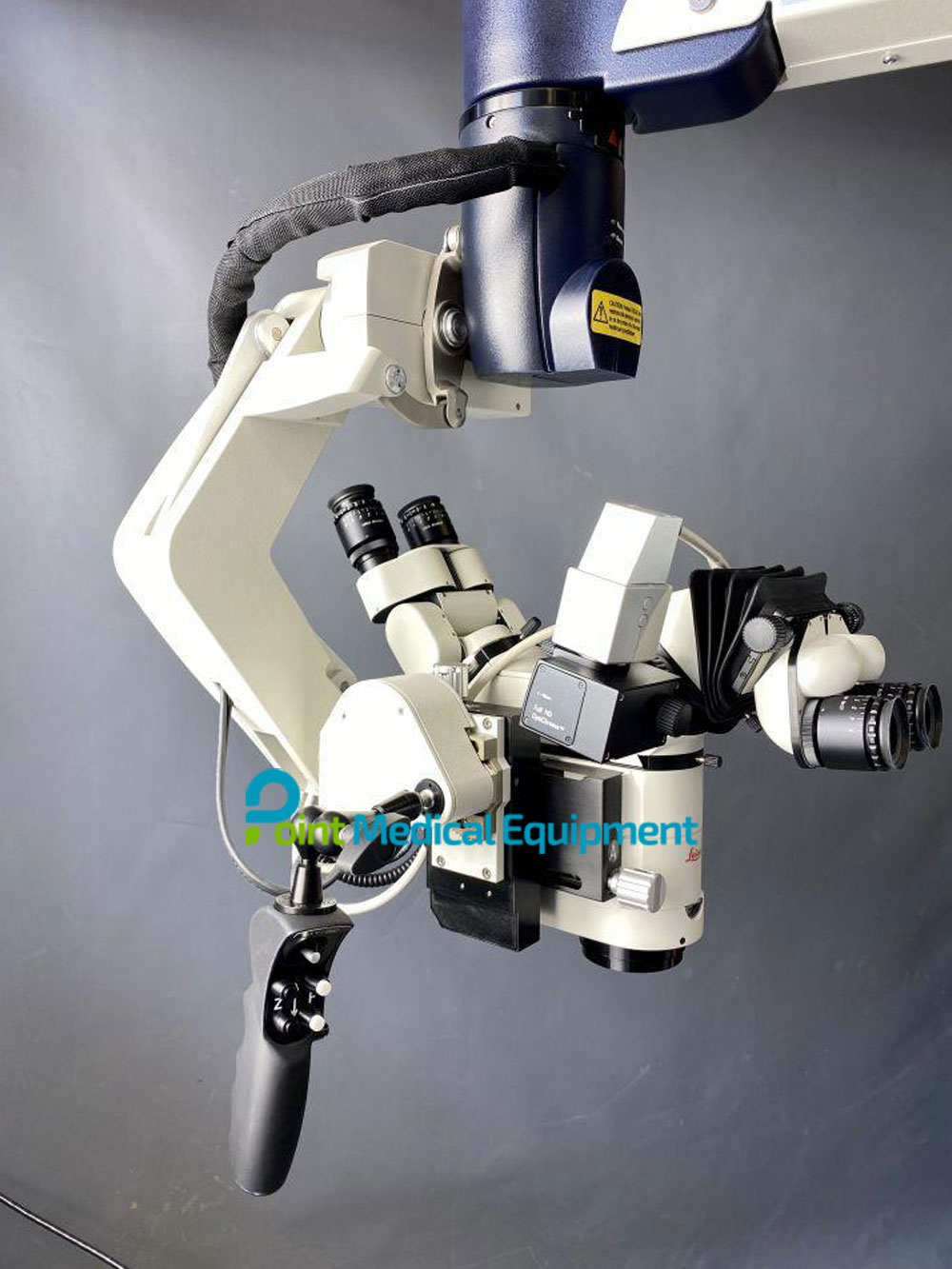

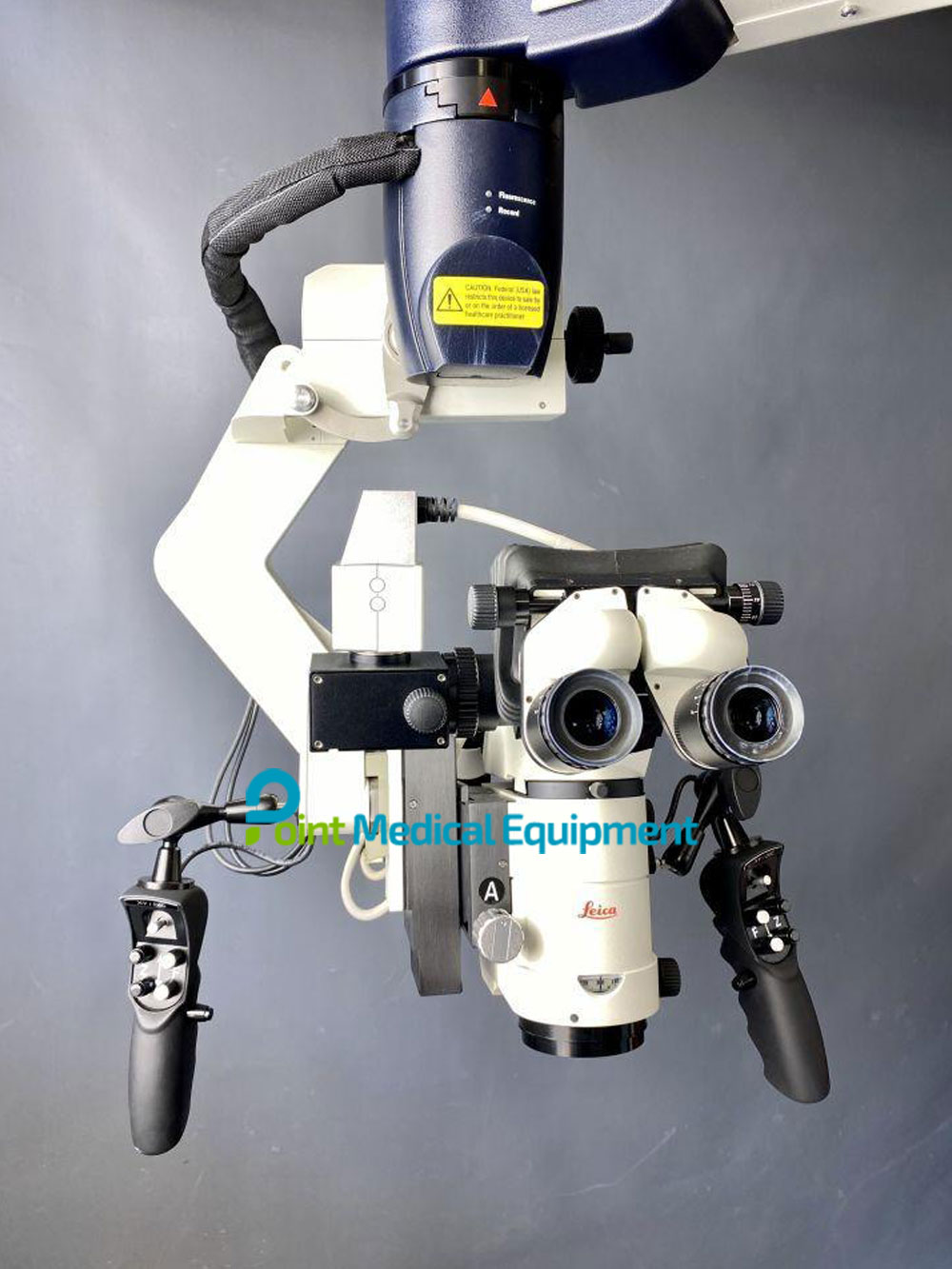

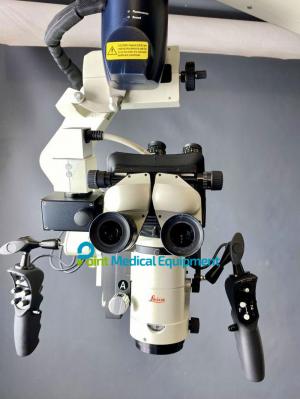

This Leica M525 F50 Surgical Microscope for sale has been professionally inspected, serviced, and calibrated by biomedical engineers. It’s ready for immediate clinical use with complete accessories and warranty options The Leica M525 F50 Surgical Microscope is engineered for precision, reliability, and ergonomic performance.
Electrical data |
|
| Power supply | 100–230 V, 50/60 Hz, 800 VA |
| Safety class / Type | Class 1 / Type B |
Leica M525 microscope |
|
| Magnification | 6:1 zoom, motorized |
| Working distance | 207 mm to 470 mm, variable through motorized multifocal length; manually adjustable. Optional WD extender lens 218 mm to 535 mm (not for IGS applications) |
| Focusing | Motorized or manual via multifocal lens, manual via swing arm |
| Eyepieces | Widefield eyepiece for eyeglass wearers 10× and 12.5×, dioptric setting ±5 with adjustable eye cup |
| Objective | Multifocal lens, 207 mm to 470 mm variable working distance |
| Illumination | Two high performance 300 watt xenon lamps through fiber optic, illumination field diameter with Gaussian light distribution |
| AutoIris | Built-in, automatic zoom-synchronized illumination field diameter, with manual override and reset feature |
| BrightCare | Safety technology for the working distance-synchronized light control |
Optical data |
|
| Range of magnification | 1.2× – 12.8× with 10× eyepiece |
| Field of view | 16.5 mm to 180 mm with 10× eyepiece |
Microscope carrier |
|
| Rotation of optics | 540° |
| Lateral tilt | 45° to left / 45° to right |
| Inclination tilt | –30° / +120° |
| Brakes | 1 brake for A/B axis, 1 brake for C axis |
| Indicator | LED for fluorescence mode status, LED for video record status |
| XY-unit (optional) | Motorized, movement range 62 × 62 mm, with automatic reset |
Leica F50 floor stand, Leica C50 Ceiling Mount |
|
| Type | Floor stand / ceiling mount with 6 electromagnetic brakes |
| Balancing |
Manual balancing for the swing arm, manual balancing for the microscope carrier |
| Control unit | New generation touch panel technology. The latest electronics control for continuous control of all motor functions and the light intensity. Data shown by means of LCD. Built-in BrightCareTM technology for working distance-synchronized light control. Intelligent Setup System, menu selection based on unique software for user-specific configuration, with built-in electronic auto-diagnosis and user support. Software-independent hard keys for illumination and main power switch. Indicator for main/backup illumination and fluorescence mode. Open architecture for future software upgrade. |
| Controls |
10-function pistol grips for zoom, focus, all-free release of six brakes, side button for user-defined brakes, motorized lateral tilt and inclination (XY) or Leica DI C500 functions. Except for the all-free button, all functions are freely programmable.
|
| Integration of documentation | Prepared for integration of video and digital recording systems. Open architecture for future documentation upgrades |
| Connectors | Numerous built-in connectors for video, IGS, and control data transfer. Internal power 12 VDC, 19 VDC, and AC connections |
| Carrier for monitor | 500 mm long, flexible arm with 2 axes for the rotation and inclination required to carry optional video monitor |
| Surface coating | Coated with antimicrobial paint |
| Maximum range | 1510 mm |
| Range of up / down | –335 mm / +421 mm (756 mm) |
| Transport height | Min. 1950 mm |
| Weight | Approx. 350 kg fully loaded |
Accessories |
||||||
| Leica ULT500 | 180° stereo observer ports with selectable lateral or opposite assistant: Main surgeon and opposite assistant 40% each eyepiece, lateral assistant / video 20% each eyepiece / beam path | |||||
| Second observer | stereo attachment: 50% each eyepiece | |||||
| Beam splitter | 50% / 50%, 70% / 30% | |||||
| Binocular tube | Variable angle 0° – 180° Variable angle 30° – 150° |
|||||
|
|
|||||
| Imaging | Leica DI C500 high resolution true color dual imaging module for correlated and non correlated data display, 1024 × 768 pixel resolution, 256 gray scale |
|||||
| IGS interface / compatibility | Open architecture for IGS systems | |||||
| Vascular Fluorescence (optional) | Leica FL800 is available in USA, EU, and most other countries | |||||
| Asepsis | Sterilizable protective glass for the objective; sterilizable components for all drive knobs, commercially available drapes | |||||
| Network (optional) | DICOM compatibility for both videos and still images, archiving to patient records | |||||
| Laser interface | Various commercially available laser micromanipulators and laser shutters can be attached | |||||
